UNMANNED AVIATION SYSTEM “AEROB 4D

“Under our latest JV with JSC “Research & Production Association Electronic Device Engineering”, Russia, we will jointly, develop and manufacture under the “Make in India” programme, advanced UAVs (fixed-wing) with cutting edge technology. ”

UNMANNED AVIATION SYSTEMS

THE FOLLOWING TECHNICAL MEANS ARE FORESEEN IN TYPICAL CONTENTS OF UAS «AEROB 4D» :
 - Unmanned aerial vehicle (up to 5 units)
 - Mobile ground control station (GCS)
 - Monitoring data processing complex
 - Mobile launch set (catapult)
 - Antenna receive/transmit system
 - Portable manual control point (up to 2 units)
 - Carrier vehicle on automobile chassis

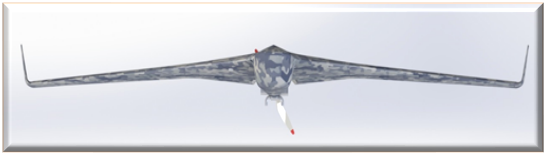

MAIN CHARACTERISTICS OF UAV «AEROB 4D»:



- Wing span – 3,6 m
- Length – 1,45 m
- Height (with fins) – 0,44 m
- Diameter of pusher airscrew – 0,55 m
- Engine unit – combustion engine, 5,5 h.p. (4 kW)
- Fuel tank capacity – 11 l
- Maximal take-off mass – 28 kg, payload – up to 12 kg
- Flight speed 80-150 km/h, cruising speed 110 km/h
- Maximal air speed – up to 200 km/h
- Flight altitude 50 – 4500 m
- Ferry range 1200 km
- Catapult take-off, landing – parachute system
- On-board electric power system for payload (up to 1 kW)

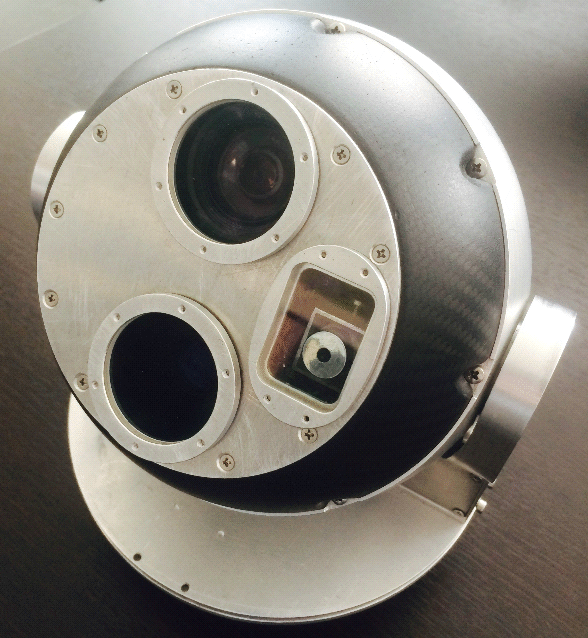

STANDARD VIDEO-SURVEILLANCE MODULE



VIDEO-SURVEILLANCE MODULE, EQUIPPED BY TWO VIDEO-CAMERAS (VISIBLE AND INFRARED RANGE), LASER TARGET INDICATOR



THE MAIN TECHNICAL CHARACTERISTICS

PARAMETER VALUE
SIZE 200 x 200 x 230 mm ± 5%
WEIGHT 2,3 kg ± 5%
RANGE OF TURN ANGLES AZIMUTH 360°X(N); PITCHING FROM +20° TO –200°; ROLLING FROM +50° TO –50°
SPEED OF VIEWING AXIS UP TO 60°/S
OPTICAL RANGE VIDE0-CAMERA STANDARD PAL, HD
THERMAL CAMERA STANDARD PAL
STABILIZATION AXIS 3
STABILIZATION AZIMUTH, ROLLING, PITCHING
BODY MATERIAL CARBON, ALUMINIUM
VIDEO-SIGNAL TYPR PAL
POWER SUPPLY DC 12V
TEMPERATURE RANGE FROM - 40°С TO + 50°С

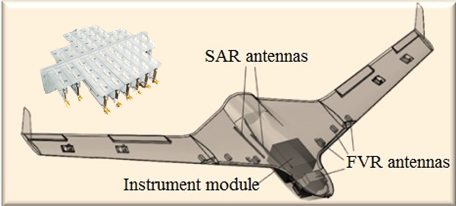

RADAR OF SIDE VIEW AND RADIO TECHNICAL RECONNAIS SANCE MODULE


RADAR OFFSIDE VIEW FOR RADIO FREQUENCY SCANNING OF EARTH SURFACE, UNDER-SUR- FACE OBJECTS, EARTH SURFACE 3D MODEL GENERATION AND AUTONOMOUS NAVIGATION WITH OPERATING RANGE UP TO 200 KM AND SCAN RESOLUTION UP TO 30 CM


RADIO TECHNICAL RECONNAISSANCE MODULE HAS THE FOLLOWING TECHNICAL CHARACTERISTICS:

PARAMETER VALUE
OPERATION FREQUENCY RANGE, GHz 2…18, 1,09±0,005
MAXIMAL DETECTION RANGE, KM 2,3KG ± 5%
SIMULTANEOUS SPACE SURVEY AREAR, ANG.DEGREE AT AZIMUTH – 180; AT ELEVATION MINUS 10…+50
TYPES OF DETECTED SIGNALS ALL SIGNALS OF MODERN ON-BOARD RTM
ACCURACY OF SIGNAL PARAMETERS MEASURING CARRIER FREQUENCY, MHz- 3; IMPULSE INTERVAL, DURATION, MCS - 0,05
MEAN SQUARE ERROR OF BEARING DEFINITION, ANG.DEGREE 10…12
RECEIVED SIGNALS POLARIZATION ANY
PERIOD OF DATA UPDATE, S 0,1…10

RADIOTECHNICAL RECONNAISSANCE MODULE PROVIDES SOLVING OF THE FOLLOWING TASKS:

  - Detection of radiotechnical means (RTM) radiation;
  - Automatic analysis of RTM radiation structure;
  - Identification of RTM and their carriers;
  - Defining danger level of carriers for the vehicle;
  - Receiving signals of satellite navigation systems of GLONASS and GPS to provide operation of the on-board navigation complex.
